50" EDF BAE Hawk Plan by Tony Nijhuis
RCM&E Special 2017

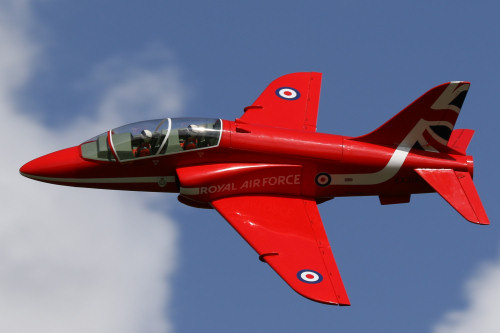

Tony Nijhuis 50" BAE Hawk

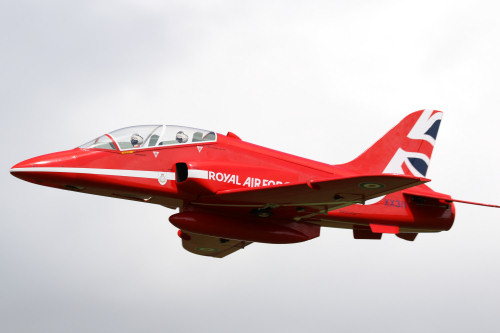

Tony Nijhuis 50" BAE Hawk

Tony Nijhuis 50" BAE Hawk



Specification

Wingspan
1282mm / 50"
Length
1307mm / 51"
AUW
9.0lbs - 10.0lbs (4Kg-4.5Kg)
Wing Area
3.39sq' (0.315m²)
Wing Loading
43oz/sq.ft. (12.9kg/sq.m)
Fan
90mm Fan (4.5Kg thrust)
Radio
6 Function (7 Servos)
Battery
8S 4000mAh - 5000mAh 40C

Please click here for the build photo's

Please click here for the build article

Click her for the recommended electric setup

It was in 2015 when we launched our 42" span Hawk and it proved to be a great success. However, many of you said it would be great to have a slightly larger version to accommodate the large and more powerful range of 90mm fan now available... So we listened and did what you asked.

Construction, as with all of our models is traditional so no foam anywhere, just good old fashioned balsa and plywood.

The plans are full size and reproduced on two large sheets of quality paper and not the 'free plan' quality, supplied with the 2017 RCM&E Special magazine.

A VAC set is available which include the canopy, nose cone and the air intake fairings.

As with all our models a CNC pack and wood pack to complete the model, is available. (Please note that the wood pack assumes you are using the CNC pack in conjunction).

The CNC pack includes all fuselage formers, fuselage side parts, the tail and fin pieces, the wing ribs plus additional parts.

We have also sourced retract units for this model which have been adjusted and tested to suit the design. These are available to buy from our website.

Note: if you operate from a restricted flying site (less than a 50m strip) or your runway is not smooth and well cut, you will have problems taking this model off due to small jet style wheels we supply with the retract units.

Finally, to assist the building of this model, we have made available free down loads of the build article and a set of build photos.

Please Note
Although we carry selective stock, some products are manufactured to order so deliveries may take up to 28 days to reach you from point of order. Also delivery of some parts including retracts and pilots, will be sent as a separate consignment

Please Note
Although we carry selective stock, we generally print and manufacture to order so deliveries may take up to 28 days to reach you from point of order. Also delivery of plans, some plastic parts and CNC wood packs will be sent as separate consignments.

For overseas orders please Email us

Description Price Quantity
Plan for 50" BAE Hawk £40.00
Vac form set (canopy, engine intakes and a nose cone) £55.00
Plan + Vac form set Save £3.00 £92.00
CNC Pack. Fuselage formers, and wing ribs £78.00
Plan + Vac form Set + CNC Pack Save £6.00 £167.00
Wood Pack (Please note that the wood pack assumes you are using the CNC pack in conjunction) £80.00
Plan + Vac form Set + CNC Pack + Wood Pack Save £10.00 £243.00
EDF BAE Hawk Retractable landing gear £190.00
2x 1/8th Scale Jet Pilots. H90mm x W80mm £25.98
