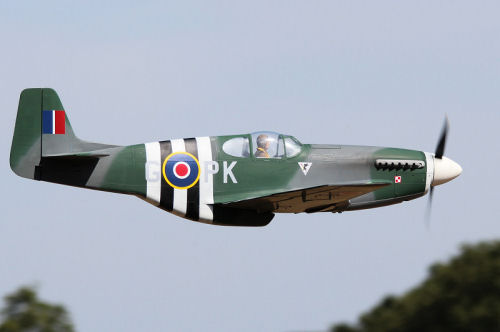

61" North American P-51B and D Mustang
RCM&E Special Plan Autumn 2013 by Tony Nijhuis






Specification

Wingspan
1550mm / 61"
Length
1375mm / 55"
Engine
65-90 IC 4 Stroke
Electric Motor
PPPO-5065-380
6S 5000mAh LiPo
4-Max Recommended
Radio
6 Function
AUW
4.1kg / 9.0lbs

Please click here for the build article

Please click here for the build photos

Please click here for the recommended electric setup

Similar in construction to most of our other 'war birds', this model is a real joy to build and great fun to fly.
There are no real vices with this model.it goes where you point it and does what you ask of it.The P51 was known as the Cadillac of the skies, and the model sure does feel solid and reassuring..... just like Cadillac I guess!

This 'B' version was designed around original 3-veiw drawings and as a consequence has a true scale appearance which should satisfy the 'true scale' modelers out there. For those modelers who would prefer to build the 'bubble canopy' D version, fear not, the plans have the details to allow you to convert from the B to the D version.
Design for 1000watt electric motor but could easily be converted to IC power for a 70-90 2 or 4 stroke glow engine.

The model has been designed around commercial 120 size electric powered retracts, These are now available through this web site.
The plans are full size, reproduced on two very large sheets of 90g bond paper and not the 'free plan' quality, supplied with the magazine.
The canopy and half cowl are available as are the CNC pack and wood pack to complete the model.

The CNC pack includes fuselage formers, the lower fuselage sides, balsa tail plane parts and ply wing ribs. It also includes the additional formers for those wishing to build the 'D' version.

Please Note
Although we carry selective stock, we generally print and manufacture to order so deliveries may take up to 28 days to reach you from point of order. Also delivery of plans, some plastic parts and CNC wood packs will be sent as separate consignments.

For overseas orders please Email us

Description Price Quantity
Plan for 61" Mustang - Covers both "B" and "D" Varients £30.00
Vac form set (canopy, cowl) For "B" Varient (Razor Back) £35.00
Vac form set (canopy, cowl) For "D" Varient (Bubble Canopy) £35.00
Plan + Vac form set Save £3.00 For "B" Varient (Razor Back) £62.00
Plan + Vac form set Save £3.00 For "D" Varient (Bubble Canopy) £62.00
CNC Pack fuselage formers, the lower fuselage sides, balsa tail plane parts and ply wing ribs) Covers both varients £82.00
Plan + Vac form Set + CNC Pack Save £6.00 For "B" Varient (Razor Back) £141.00
Plan + Vac form Set + CNC Pack Save £6.00 For "D" Varient (Bubble Canopy) £141.00
Wood Pack to complete model (stock sheet and strip) Covers both varients £108.00
Plan + Vac form Set + CNC Pack + Wood Pack Save £10.00 For "B" Varient (Razor Back) £245.00
Plan + Vac form Set + CNC Pack + Wood Pack Save £10.00 For "D" Varient (Bubble Canopy) £245.00
P-51 Mustang Electric retracts Basic Retracts for the 61" Mustang Without Wheels £140.00 Out of Stock
P-51 Mustang Electric retracts including cranked oleo legs and Robart 83mm diameter diamond treaded wheels. £180.00 Out of Stock
1/7th Scale British WWII Pilot. H105mm x W95mm £14.99
1/7th Scale American WWII Pilot. H105mm x W95mm £14.99
