42" EDF BAE Hawk Plan by Tony Nijhuis

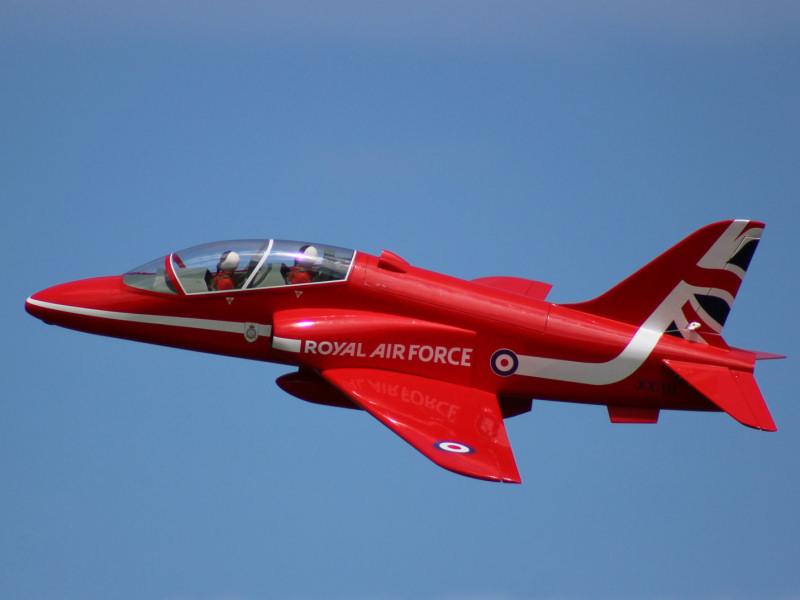

Tony Nijhuis 42" BAE Hawk

Tony Nijhuis 42" BAE Hawk



Specification

Wingspan
1067mm / 42"
Length
1098mm / 43"
AUW
4.5lbs 5.5lbs (2.1Kg-2.7Kg)
Wing Area
sq' (0.22m²)
Wing Loading
31oz/sq.ft. (9.86kg/sq.m)
Fan
68-70mm Fan
Radio
3-5 Function (3-5 Servos)
Battery
40C 6S 3000mAh - 4000mAh

Please click here for the build photo's

Please click here for the build article

This is now the second ducted fan model in our range and one that so many of our customers wanted us to design..the BAE Hawk.

With 2014 being the 50th Anniversary, of the Red Arrows display team, the team for 2015 will be displaying a new 'Union Jack' tailfin livery, so what better than to celebrate this milestone with our own personal tribute to this wonderful aircraft and team.

The construction of the Hawk, as with all of our models is traditional, so no foam anywhere, just good old fashioned balsa and plywood.

The plans are full size and reproduced on two large sheets of quality paper.

A VAC form set is available which include the canopy, engine intakes and a nose cone.

As with all our models a CNC pack and wood pack to complete the model is available. (Please note that the wood pack assumes you are using the CNC pack in conjunction).

The CNC pack includes all fuselage formers, fuselage sides, the wing ribs, fin & tail plane parts, plus additional parts.

We have also sourced retract units for this model which have been adjusted and tested to suit the design. These are available to buy from our website.

Note: We strongly suggest you only fit retracts if you have access to a firm well mown strip or hard runway. If your flying strip is restrictive and is a less than a perfect patch, we suggest you bungee launch and belly land the model.

Finally, to assist the building of this model, we have made available a free down load of the build article and a set of build photos.

Please Note
Although we carry selective stock, we generally print and manufacture to order so deliveries may take up to 28 days to reach you from point of order. Also delivery of plans, some plastic parts and CNC wood packs will be sent as separate consignments.

For overseas orders please Email us

Description Price Quantity
Plan for 42" BAE Hawk £25.00
Vac form set (canopy, engine intakes and a nose cone) £44.00
Plan + Vac form set Save £3.00 £66.00
CNC Pack. Fuselage formers, and wing ribs £62.00
Plan + Vac form Set + CNC Pack Save £4.00 £127.00
Wood Pack (Please note that the wood pack assumes you are using the CNC pack in conjunction) £59.00
Plan + Vac form Set + CNC Pack + Wood Pack Save £5.00 £185.00
EDF BAE Hawk Retractable landing gear £110.00 Out of Stock
Pair of 1/9th Scale Jet Pilots. H85mm x W70mm £21.98
